Elecrow ThinkNode M6

Elecrow

868 MHz 915 MHz SX1262 nRF52840 22 dBm
Ready-made Devices Outdoor/Rugged High-Performance Ultra Low Power

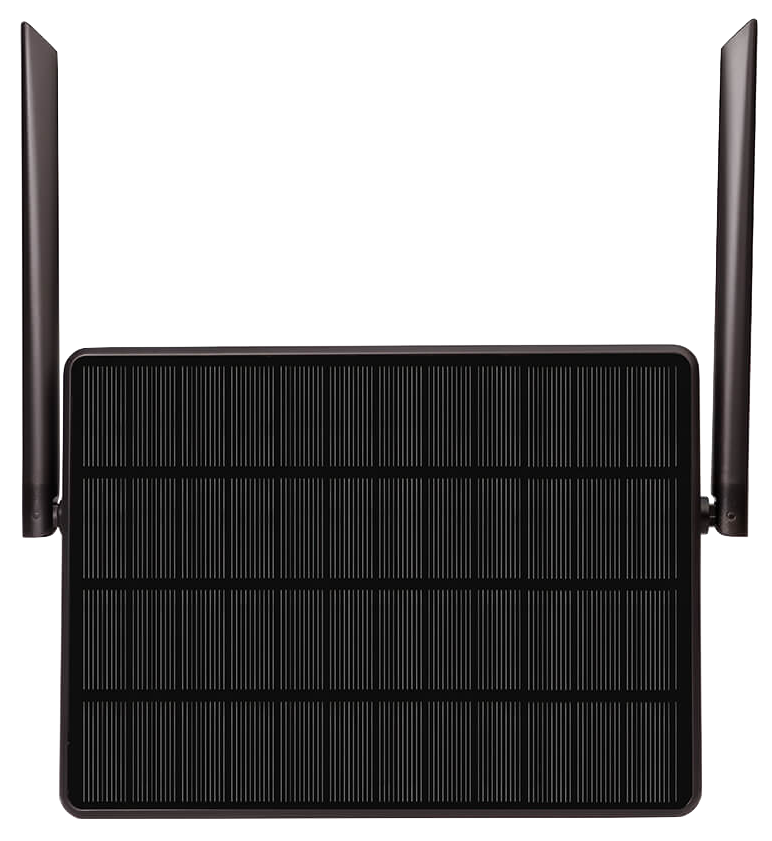

Fertig montierter Solar-Outdoor-Repeater-Node von Elecrow. nRF52840 + SX1262 (nRFLR1262-Modul). 6W MPPT-Solarpanel, zwei 18650-Akkus (7000 mAh gesamt). IP65-Gehäuse, Betriebstemperatur -20 bis 60°C. Flexible Montage: Wandhalter, Mastbefestigung, U-Klemmen. Dual SP11 Wasserdichte Aviation-Buchsen für I2C/UART. Vorinstalliert Meshtastic, MeshCore ab v1.12.0 unterstützt. Sofort einsatzbereit für permanente Außeninstallation.

Hardware Spezifikationen

MCU

nRF52840

RAM

256 KB

Flash

1 MB

Anzahl Tasten

1

LEDs vorhanden

ja

Gewicht

800 g

Abmessungen

200 x 150 x 80 (inkl. Panel)

LoRa Spezifikationen

LoRa-Chip

SX1262

Frequenzband

868 MHz, 915 MHz

Max. Sendeleistung

22 dBm

Antennentyp

RP-SMA Außenantenne

Typische Reichweite

25 km

Konnektivität

WLAN

nein

Bluetooth

ja

GPS

ja

Stromversorgung

USB-Typ

-

Akkuanschluss

2x 18650 (7000mAh gesamt)

Solar-Unterstützung

ja

Stromverbrauch (Standby)

10 mA

Stromverbrauch (Senden)

85 mA

Firmware-Unterstützung

meshcore-dev/MeshCore Offiziell
Repeater v1.16.0 15.02.2026 Release

Release notes: https://blog.meshcore.io/2026/06/06/release-1-16-0

Room Server v1.16.0 15.02.2026 Release

Release notes: https://blog.meshcore.io/2026/06/06/release-1-16-0

BLE Companion v1.16.0 15.02.2026 Release

Release notes: https://blog.meshcore.io/2026/06/06/release-1-16-0

USB Companion v1.16.0 15.02.2026 Release

Release notes: https://blog.meshcore.io/2026/06/06/release-1-16-0

mattzzw/MeshCore-Evo Community
Repeater v1.15.0-evo_0.1.21 14.01.2026 Release

⚠️ Check that radio.rxgain(on) and flood.advert.base (0.308) are set correctly after flashing! ⚠️

This build is based on official MeshCore 1.15.0 dev branch (as of 25-May-2026 and additionally includes the following unmerged upstream PRs/changes:

Additional changes:
  • Flood adverts are disabled (flood.advert.interval set to 0) by default
  • :new: modified PR1810 to not block flood adverts but only PAYLOADTYPEGRPTXT and PAYLOADTYPEGRPDATA so that some limited flood advert distribution can be managed via PR2553 to support e.g. observer maps.
Changelog:
  • Based on dev v1.15.0 as of 25-May-2026
Full Changelog: https://github.com/mattzzw/MeshCore-Evo/compare/v1.15.0-evo0.1.20...v1.15.0-evo0.1.21
MichTronics/MeshCoreNG Community
Repeater v1.0.1 17.05.2026 Release

Full Changelog: https://github.com/MichTronics/MeshCoreNG/compare/bridge-tcp-v1.0.5...repeater-v1.0.1

BLE Companion v1.0.1 17.05.2026 Release

Full Changelog: https://github.com/MichTronics/MeshCoreNG/compare/bridge-tcp-v1.0.5...companion-v1.0.1

USB Companion v1.0.1 17.05.2026 Release

Full Changelog: https://github.com/MichTronics/MeshCoreNG/compare/bridge-tcp-v1.0.5...companion-v1.0.1

Room Server v1.0.1 17.05.2026 Release

Full Changelog: https://github.com/MichTronics/MeshCoreNG/compare/bridge-tcp-v1.0.5...room-server-v1.0.1
