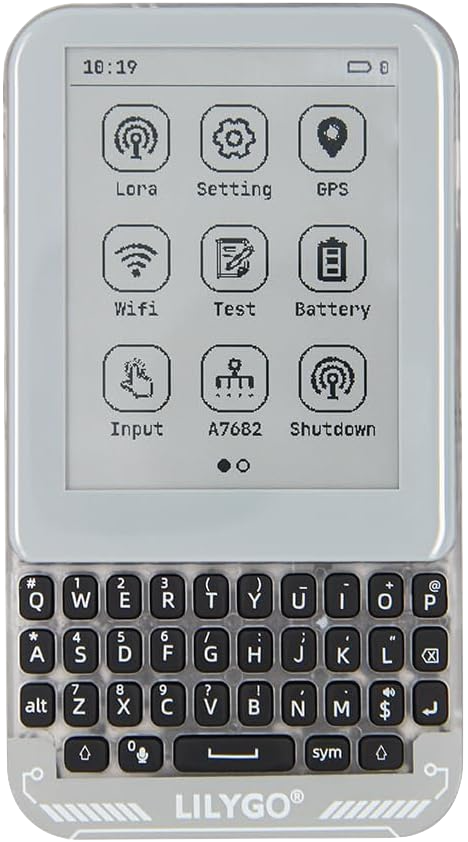

LilyGo T-Deck Pro

LilyGo (Shenzhen Xinyuan Electronic Technology)

868 MHz 915 MHz SX1262 ESP32-S3 22 dBm
Ready-made Devices High-Performance Handheld

Weiterentwicklung des T-Deck mit 3,1" E-Paper Touch-Display für stark verbesserte Outdoor-Lesbarkeit und längere Akkulaufzeit. QWERTY-Tastatur (Blackberry-Style), GPS, Speaker, Mikrofon, 3,5-mm-Klinke, IMU und Lichtsensor. Zwei Versionen: PCM5102A (Audio) und A7682E (4G LTE).

Klasse: Ripple GUI (v8.2) – offiziell unterstützt.

Hardware Spezifikationen

MCU

ESP32-S3

RAM

8 MB

Flash

16 MB

Display

E-Paper Touch (3.1" 320x240)

Anzahl Tasten

5

LEDs vorhanden

ja

Gewicht

135 g

Abmessungen

140 x 72 x 12

LoRa Spezifikationen

LoRa-Chip

SX1262

Frequenzband

868 MHz, 915 MHz

Max. Sendeleistung

22 dBm

Antennentyp

Integrierte Antenne + opt. extern

Typische Reichweite

15 km

Konnektivität

WLAN

ja

Bluetooth

ja

GPS

ja

Stromversorgung

USB-Typ

USB-C

Akkuanschluss

Built-in LiPo 1400mAh

Solar-Unterstützung

nein

Stromverbrauch (Standby)

50 mA

Stromverbrauch (Senden)

120 mA

Firmware-Unterstützung

Repeater v1.16.0 28.09.2025 Release

Release notes: https://blog.meshcore.io/2026/06/06/release-1-16-0

BLE Companion v1.16.0 28.09.2025 Release

Release notes: https://blog.meshcore.io/2026/06/06/release-1-16-0

USB Companion v1.16.0 28.09.2025 Release

Release notes: https://blog.meshcore.io/2026/06/06/release-1-16-0

Repeater v1.15.0-evo_0.1.21 14.01.2026 Release

⚠️ Check that radio.rxgain(on) and flood.advert.base (0.308) are set correctly after flashing! ⚠️

This build is based on official MeshCore 1.15.0 dev branch (as of 25-May-2026 and additionally includes the following unmerged upstream PRs/changes:

Additional changes:
  • Flood adverts are disabled (flood.advert.interval set to 0) by default
  • :new: modified PR1810 to not block flood adverts but only PAYLOADTYPEGRPTXT and PAYLOADTYPEGRPDATA so that some limited flood advert distribution can be managed via PR2553 to support e.g. observer maps.
Changelog:
  • Based on dev v1.15.0 as of 25-May-2026
Full Changelog: https://github.com/mattzzw/MeshCore-Evo/compare/v1.15.0-evo0.1.20...v1.15.0-evo0.1.21
Repeater v1.0.1 17.05.2026 Release

Full Changelog: https://github.com/MichTronics/MeshCoreNG/compare/bridge-tcp-v1.0.5...repeater-v1.0.1

BLE Companion v1.0.1 17.05.2026 Release

Full Changelog: https://github.com/MichTronics/MeshCoreNG/compare/bridge-tcp-v1.0.5...companion-v1.0.1

USB Companion v1.0.1 17.05.2026 Release

Full Changelog: https://github.com/MichTronics/MeshCoreNG/compare/bridge-tcp-v1.0.5...companion-v1.0.1
