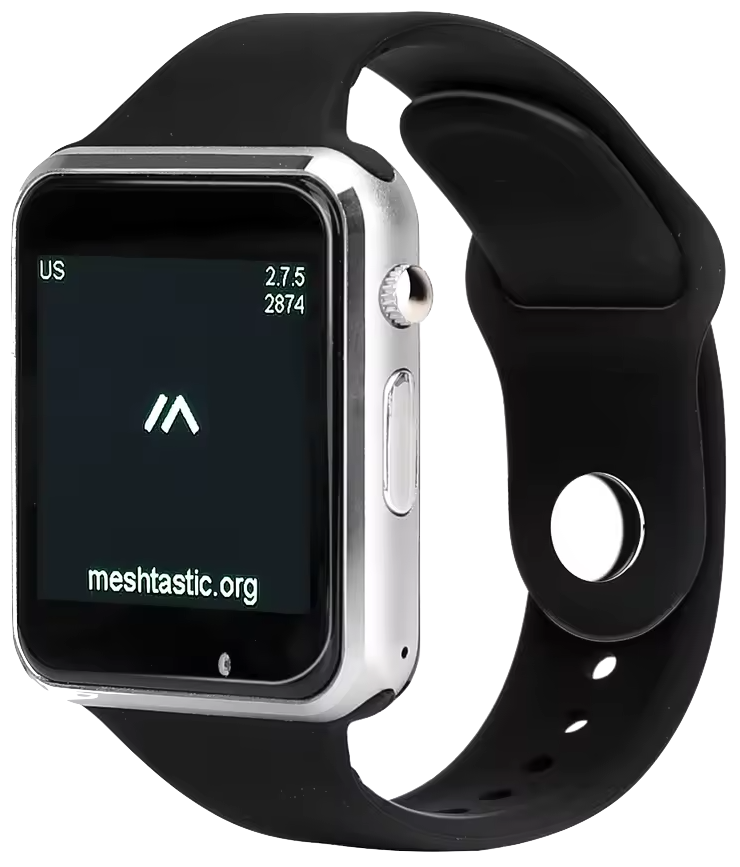

LilyGo T-Watch S3 Plus

LilyGo (Shenzhen Xinyuan Electronic Technology)

868 MHz 915 MHz SX1262 ESP32-S3 22 dBm
Ready-made Devices Tracker/GPS Handheld

Erweiterter Nachfolger der T-Watch S3 mit integriertem GPS (XIAO L76K). ESP32-S3 mit 16 MB Flash und 8 MB PSRAM. SX1262 LoRa (868/915 MHz). 1,54" AMOLED-Touchscreen 240×240. BMA423 IMU, MAX30102 Herzraten-/SpO2-Sensor, PDM-Mikrofon, Max98357A Audio, DRV2605 Haptic-Motor, AXP2101 PMU. Akku 940 mAh. MeshCore Ripple GUI (v9.3) offiziell unterstützt. WiFi + BLE 5.0.

Hardware Specifications

MCU

ESP32-S3

RAM

8 MB

Flash

16 MB

Display

AMOLED Touch (1.54" 240x240)

Button Count

1

Has LEDs

true

Weight

60 g

Dimensions

46 x 46 x 12

LoRa Specifications

LoRa Chip

SX1262

Frequency Band

868 MHz, 915 MHz

Max. TX Power

22 dBm

Antenna Type

Integrierte PCB-Antenne

Typical Range

8 km

Connectivity

WiFi

true

Bluetooth

true

GPS

true

Power

USB Type

USB-C

Battery Connector

Built-in LiPo 940mAh

Solar Support

false

Power Consumption (Idle)

40 mA

Power Consumption (TX)

110 mA
