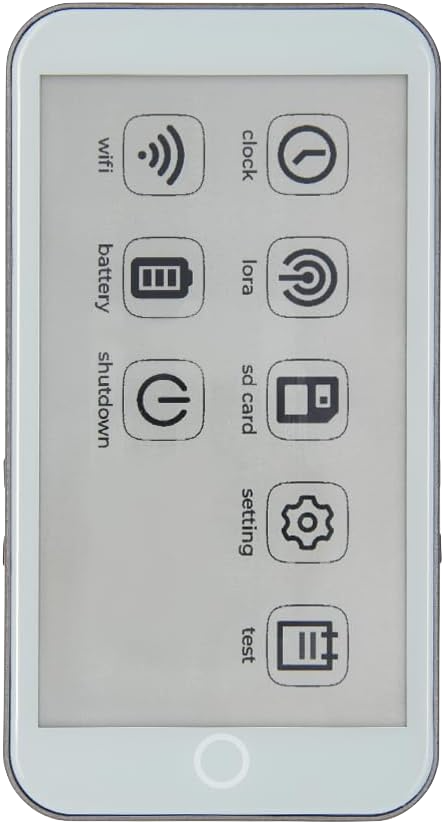

LilyGo T5 E-Paper S3 Pro

LilyGo (Shenzhen Xinyuan Electronic Technology)

868 MHz 915 MHz SX1262 ESP32-S3-WROOM-1 22 dBm
Ready-made Devices Ultra Low Power

Großformatiges E-Paper-Board mit 4,7" E-Ink-Display (960×540, 16 Graustufen) und kapazitivem Touch. Basiert auf ESP32-S3-WROOM-1 mit 16 MB Flash und 8 MB PSRAM. SX1262 LoRa, MagSafe-Wireless-Laden, RTC, SD-Karte und optionalem GPS (L76K). Ideal für Karten-Anzeigen und portable MeshCore-Knoten.

Klasse: Ripple GUI (v8.2).

Hardware Specifications

MCU

ESP32-S3-WROOM-1

RAM

8 MB

Flash

16 MB

Display

E-Ink Touch (4.7" 960x540)

Button Count

2

Has LEDs

true

Weight

95 g

Dimensions

120 x 75 x 10

LoRa Specifications

LoRa Chip

SX1262

Frequency Band

868 MHz, 915 MHz

Max. TX Power

22 dBm

Antenna Type

Integrierte PCB-Antenne

Typical Range

18 km

Connectivity

WiFi

true

Bluetooth

true

GPS

true

Power

USB Type

USB-C

Battery Connector

Built-in LiPo 1500mAh

Solar Support

false

Power Consumption (Idle)

25 mA

Power Consumption (TX)

110 mA
