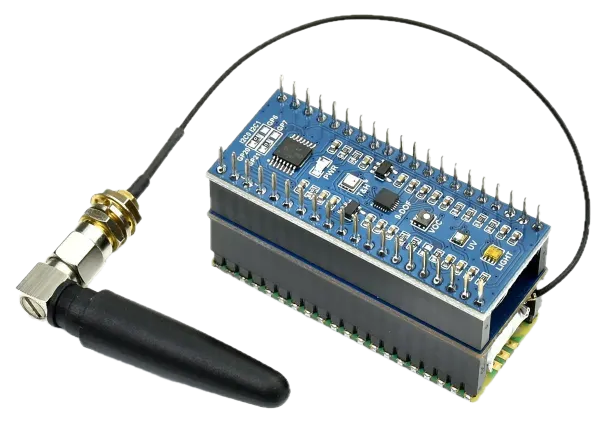

Raspberry Pi Pico2 W + Waveshare SX1262

Waveshare

868 MHz 915 MHz SX1262 RP2350 22 dBm
DIY Modules Budget

Raspberry Pi Pico2 W (RP2350, dual-core ARM Cortex-M33, 520 KB RAM, 4 MB Flash) mit Waveshare SX1262 LoRa-HAT. WiFi und BLE integriert im Pico2 W. Community-Firmware: Companion BLE/USB, Repeater, Room Server. Preisgünstiger Einstieg mit RP2350-Architektur.

Hardware Specifications

MCU

RP2350

RAM

520 KB

Flash

4 MB

Display

-

Button Count

1

Has LEDs

true

Weight

15 g

Dimensions

51 x 21 + HAT

LoRa Specifications

LoRa Chip

SX1262

Frequency Band

868 MHz, 915 MHz

Max. TX Power

22 dBm

Antenna Type

SMA connector (Waveshare HAT)

Typical Range

12 km

Connectivity

WiFi

true

Bluetooth

true

GPS

false

Power

USB Type

Micro-USB

Battery Connector

Pin Headers / extern

Solar Support

false

Power Consumption (Idle)

20 mA

Power Consumption (TX)

100 mA
