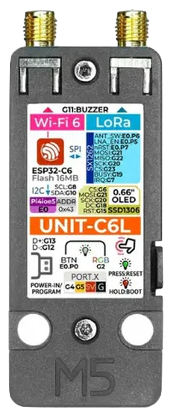

M5Stack Unit C6L

M5Stack

868 MHz 915 MHz SX1262 ESP32-C6 22 dBm
DIY Modules

Kompakte LoRa-Kommunikationseinheit von M5Stack auf Basis des ESP32-C6 (RISC-V, 160 MHz) mit SX1262 Transceiver. Integriertes 0,66'' SSD1306 OLED (64×48 Pixel), RGB-LED (WS2812C), Buzzer und Taste. Zwei SMA-Antennenanschlüsse (2,4 GHz Wi-Fi 6 + LoRa). Grove I2C-Port, USB-C (5V). Kein GPS. Empfangsempfindlichkeit -147 dBm. Messtatic offiziell unterstützt, MeshCore-Firmware ab v1.13.0. Preis ca. 23 USD. 16 MB Flash.

Hardware Spezifikationen

MCU

ESP32-C6

RAM

512 KB

Flash

16 MB

Display

OLED (0.66'' 64x48)

Anzahl Tasten

2

LEDs vorhanden

ja

Gewicht

35 g

Abmessungen

62 x 24 x 8

LoRa Spezifikationen

LoRa-Chip

SX1262

Frequenzband

868 MHz, 915 MHz

Max. Sendeleistung

22 dBm

Antennentyp

SMA Außenantenne

Typische Reichweite

22 km

Konnektivität

WLAN

ja

Bluetooth

ja

GPS

nein

Stromversorgung

USB-Typ

USB-C

Akkuanschluss

extern (5V)

Solar-Unterstützung

nein

Stromverbrauch (Standby)

1 mA

Stromverbrauch (Senden)

85 mA

Firmware-Unterstützung

meshcore-dev/MeshCore Offiziell
Repeater v1.16.0 06.03.2026 Release

Release notes: https://blog.meshcore.io/2026/06/06/release-1-16-0

Room Server v1.16.0 06.03.2026 Release

Release notes: https://blog.meshcore.io/2026/06/06/release-1-16-0

BLE Companion v1.16.0 06.03.2026 Release

Release notes: https://blog.meshcore.io/2026/06/06/release-1-16-0

USB Companion v1.16.0 06.03.2026 Release

Release notes: https://blog.meshcore.io/2026/06/06/release-1-16-0

mattzzw/MeshCore-Evo Community
Repeater v1.15.0-evo_0.1.21 21.02.2026 Release

⚠️ Check that radio.rxgain(on) and flood.advert.base (0.308) are set correctly after flashing! ⚠️

This build is based on official MeshCore 1.15.0 dev branch (as of 25-May-2026 and additionally includes the following unmerged upstream PRs/changes:

Additional changes:
  • Flood adverts are disabled (flood.advert.interval set to 0) by default
  • :new: modified PR1810 to not block flood adverts but only PAYLOADTYPEGRPTXT and PAYLOADTYPEGRPDATA so that some limited flood advert distribution can be managed via PR2553 to support e.g. observer maps.
Changelog:
  • Based on dev v1.15.0 as of 25-May-2026
Full Changelog: https://github.com/mattzzw/MeshCore-Evo/compare/v1.15.0-evo0.1.20...v1.15.0-evo0.1.21
MichTronics/MeshCoreNG Community
Repeater v1.0.1 17.05.2026 Release

Full Changelog: https://github.com/MichTronics/MeshCoreNG/compare/bridge-tcp-v1.0.5...repeater-v1.0.1

BLE Companion v1.0.1 17.05.2026 Release

Full Changelog: https://github.com/MichTronics/MeshCoreNG/compare/bridge-tcp-v1.0.5...companion-v1.0.1

USB Companion v1.0.1 17.05.2026 Release

Full Changelog: https://github.com/MichTronics/MeshCoreNG/compare/bridge-tcp-v1.0.5...companion-v1.0.1

Room Server v1.0.1 17.05.2026 Release

Full Changelog: https://github.com/MichTronics/MeshCoreNG/compare/bridge-tcp-v1.0.5...room-server-v1.0.1
