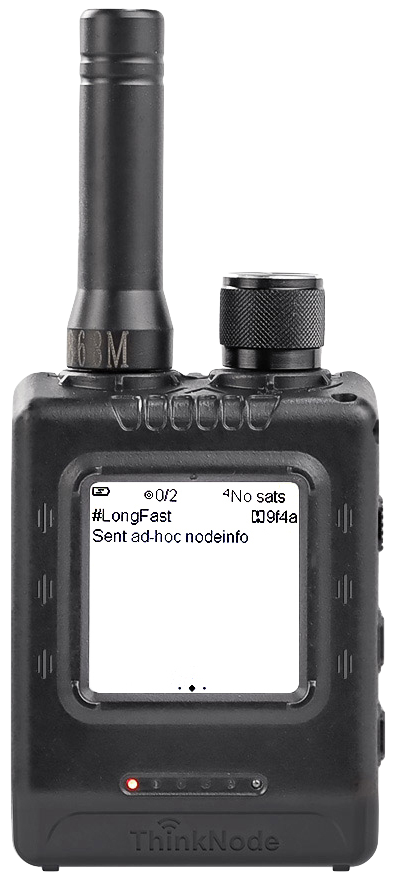

Elecrow ThinkNode M5

Elecrow

868 MHz 915 MHz SX1262 ESP32-S3 22 dBm
Ready-made Devices Ultra Low Power

ESP32-S3-Variante des ThinkNode (komplementär zum nRF52840-basierten M1). SX1262 LoRa-Chip, 1,54'' E-Paper-Display (EPD), GPS (GPS/GLONASS/BeiDou/QZSS), 1200 mAh Akku. Rotary-Schalter für Helligkeit und Ein/Aus, zwei Navigationstasten. WiFi und BLE via ESP32-S3. Ab Werk Meshtastic, MeshCore-Firmware (v1.11.0+) offiziell unterstützt. Community-Firmware: Companion BLE/WiFi/USB, Repeater, Room Server.

Hardware Spezifikationen

MCU

ESP32-S3

RAM

8 MB

Flash

8 MB

Display

E-Paper (1.54'' 200x200)

Anzahl Tasten

2

LEDs vorhanden

ja

Gewicht

65 g

Abmessungen

78 x 52 x 18

LoRa Spezifikationen

LoRa-Chip

SX1262

Frequenzband

868 MHz, 915 MHz

Max. Sendeleistung

22 dBm

Antennentyp

RP-SMA Außenantenne

Typische Reichweite

15 km

Konnektivität

WLAN

ja

Bluetooth

ja

GPS

ja

Stromversorgung

USB-Typ

USB-C

Akkuanschluss

Built-in LiPo 1200mAh

Solar-Unterstützung

nein

Stromverbrauch (Standby)

34 mA

Stromverbrauch (Senden)

340 mA

Firmware-Unterstützung

meshcore-dev/MeshCore Offiziell
BLE Companion v1.16.0 30.11.2025 Release

Release notes: https://blog.meshcore.io/2026/06/06/release-1-16-0

USB Companion v1.16.0 30.11.2025 Release

Release notes: https://blog.meshcore.io/2026/06/06/release-1-16-0

Repeater v1.16.0 29.01.2026 Release

Release notes: https://blog.meshcore.io/2026/06/06/release-1-16-0

Room Server v1.16.0 19.04.2026 Release

Release notes: https://blog.meshcore.io/2026/06/06/release-1-16-0

mattzzw/MeshCore-Evo Community
Repeater v1.15.0-evo_0.1.21 14.01.2026 Release

⚠️ Check that radio.rxgain(on) and flood.advert.base (0.308) are set correctly after flashing! ⚠️

This build is based on official MeshCore 1.15.0 dev branch (as of 25-May-2026 and additionally includes the following unmerged upstream PRs/changes:

Additional changes:
  • Flood adverts are disabled (flood.advert.interval set to 0) by default
  • :new: modified PR1810 to not block flood adverts but only PAYLOADTYPEGRPTXT and PAYLOADTYPEGRPDATA so that some limited flood advert distribution can be managed via PR2553 to support e.g. observer maps.
Changelog:
  • Based on dev v1.15.0 as of 25-May-2026
Full Changelog: https://github.com/mattzzw/MeshCore-Evo/compare/v1.15.0-evo0.1.20...v1.15.0-evo0.1.21
MichTronics/MeshCoreNG Community
Repeater v1.0.1 17.05.2026 Release

Full Changelog: https://github.com/MichTronics/MeshCoreNG/compare/bridge-tcp-v1.0.5...repeater-v1.0.1

BLE Companion v1.0.1 17.05.2026 Release

Full Changelog: https://github.com/MichTronics/MeshCoreNG/compare/bridge-tcp-v1.0.5...companion-v1.0.1

USB Companion v1.0.1 17.05.2026 Release

Full Changelog: https://github.com/MichTronics/MeshCoreNG/compare/bridge-tcp-v1.0.5...companion-v1.0.1

Room Server v1.0.1 17.05.2026 Release

Full Changelog: https://github.com/MichTronics/MeshCoreNG/compare/bridge-tcp-v1.0.5...room-server-v1.0.1
