LilyGo T-Beam 1W

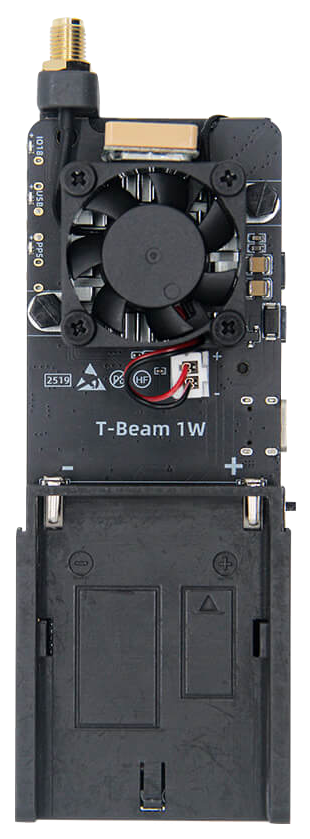

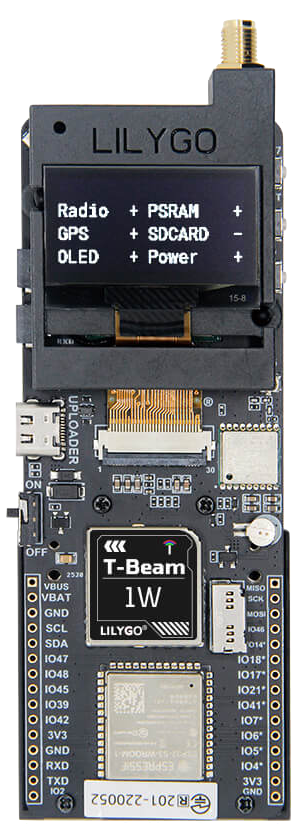

Hochleistungs-LoRa-Board von LilyGo auf ESP32-S3-Basis mit 1W-Leistungsverstärker (PA) und LNA. TX-Leistung bis 32 dBm – die höchste aller gängigen MeshCore-Boards. SX1262-Transceiver mit integriertem PA/LNA-Schaltkreis. L76K GNSS, 1,3'' SH1106 OLED, MicroSD-Slot, AXP2101 PMU, Qwiic-Connector. Betrieb mit 7,4V-Akku (2S LiPo), inkl. Kühlventilator bei Hochleistungsbetrieb. 16 MB Flash, 8 MB PSRAM. MeshCore Companion-Firmware ab v1.13.0.
LoRa-Spezifikationen
MCU
ESP32-S3FN8
RAM
8 MB
Flash
16 MB
Display
OLED (1.3'' 128x64)
Anzahl Tasten
3
LEDs vorhanden
ja
Gewicht
80 g
Abmessungen
120 x 50 x 20
LoRa-Spezifikationen
LoRa-Chip
SX1262 + 1W PA/LNA
Frequenzband
868 MHz, 915 MHz
Max. Sendeleistung
32 dBm
Antennentyp
SMA Außenantenne
Typische Reichweite
50 km
Konnektivität
WLAN
ja
Bluetooth
ja
GPS
ja
Stromversorgung
USB-Typ
USB-C
Akkuanschluss
2S LiPo 7.4V (extern, JST)
Solar-Unterstützung
nein
Stromverbrauch (Standby)
60 mA
Stromverbrauch (Senden)
500 mA
Firmware-Unterstützung
MeshCore-Unterstützung
community
Unterstützte Funktionen
Companion BLE Companion WiFi Companion USB Repeater Room Server 32dBm 1W PA LNA GPS SD-Card AXP2101 PMU Qwiic 8MB PSRAM Kühlventilator
